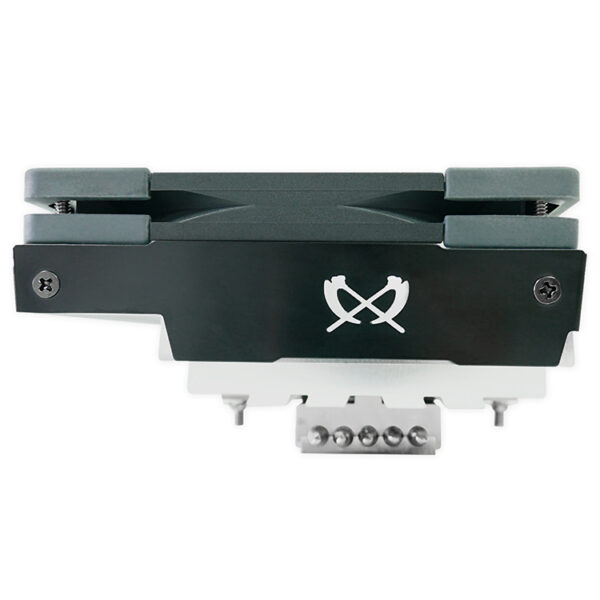

Scythe Big Shuriken 3
- 69 mm tall perfectly fits Small Form Factor PC (Mini ITX, HTPC Case). Asymmetric and offset design for excellent compatibility with Mini ITX, Micro ATX motherboards and high-end RAM. Premium model for Intel Core i9, i7, i5, i3 and AMD Ryzen.
- Included Kaze Flex 120 slim PWM fan (Sealed Precision FDB) for long lifespan and quiet operation. In case the "CPU FAN ERROR" message is displayed by the UEFI (BIOS), please adjust the UEFI fan speed settings ("CPU Fan Speed Low Limit" - Option).
- Copper base and 5 heatpipe design, the heatsink is equipped with silent fan (15 mm thick), and has option using regular 25 mm thick fan for greater cooling performance for high TDP processor (9900k, 9700k, 9600k).
- HPMS III spring loaded mounting system is easy to install and secure for INTEL LGA 775, 1150/1151/1155/1156, 1200, 1366, 2011(V3) Square ILM, 2066 Square ILM & AMD AM2(+), AM3(+), AM4, FM1, FM2(+). Original backplate required for AMD sockets.
₱3,200.00
CPU Cooler Specification
| Model Name | Big Shuriken 3 |
| Model Number | SCBSK-3000 |
| UPC | 812623021139 |
| Intel Sockets Compatibility | LGA 775 / 115X / 1200 / 1366 / 2011(v3) / 2066 |
| AMD Sockets Compatibility | AM2 / AM3(+) / AM4 / FM1 / FM2(+) |
| Dimension | W122.0 x D122.0 x H69.0 mm |
| Heatpipe | Ø6 mm x 5 |
| Weight (Fan Included) | 475 g |
| Baseplate Material | Nickel-plated copper |
| Included in the Box | Mounting parts for Intel™ and AMD™ sockets, thermal grease, installation manual, screws for mounting fans with 25 mm height |
Fan Specification
| Model Name | Kaze Flex 120 Slim PWM – 1800 RPM |
| Model Number | KF1215FD18-P |
| Fan Size | 120 x 120 x 17 mm (included anti-vibration rubber pads) |
| Fan Speed | 300 ± 200 ~ 1800 ± 10% RPM |
| Air Flow | 8.28 ~ 50.79 CFM |
| Connector | 4-Pin PWM |
| Static Pressure | Static Pressure: 0.056 ~ 1.35 mmH²O / 0.55 ~ 13.24 Pa |
| Bearing | Bearing: Sealed Precision Fluid Dynamic Bearing (FDB) |
| Noise | 2.7 ~ 30.4 dBA |
| Voltage | 12 V |
| Amperage | 0.20 A |
| MTTF | 100,000 hours (25°C/77°F) |
